Chimney Crown Rebuild in Whitinsville, MA

Understanding Chimney Crown Deterioration

Chimney crowns are exposed to more punishment than virtually any other component of the chimney system. Sitting at the very top of the structure, they bear the full brunt of sun, rain, wind, ice, and temperature swings year after year. Several factors commonly drive crown deterioration:

• Poor Initial Construction: Not all chimney crowns are built equal. A crown that was originally constructed with an improper concrete mix, insufficient thickness, or without a proper overhang to direct water away from the masonry will begin to fail sooner than one that was properly built from the start. Many older chimneys were capped with mortar rather than concrete – a practice that produces a crown that is far less durable and far more susceptible to cracking.
• Freeze-Thaw Cycling: In Massachusetts, temperatures swing above and below freezing dozens of times each winter. Every time moisture-laden concrete freezes, it expands – and every time it thaws, it contracts. This relentless expansion and contraction cycle causes cracks to form and widen over time, progressively breaking down the crown’s structural integrity until pieces begin to crumble and fall away entirely.
• Water Infiltration Through Existing Cracks: Once a crown develops even minor cracks, the deterioration accelerates. Water enters through those cracks, freezes, and expands – widening the cracks further and causing more concrete to break apart with each subsequent freeze-thaw cycle. A crown that starts with a hairline crack can progress to significant crumbling within just a few winter seasons if left unaddressed.
• Lack of Sealing or Maintenance: A crown that was never sealed – or one whose sealer has worn away over the years – is far more susceptible to moisture absorption and the freeze-thaw damage it causes. Regular sealing of a chimney crown is one of the simplest and most cost-effective ways to extend its service life, but it is a step that is frequently overlooked until damage is already evident.

For this Whitinsville homeowner, all of these factors had combined to produce a crown that was beyond repair. Patching crumbling concrete is rarely a lasting solution – when deterioration reaches a certain threshold, a full rebuild is the only approach that will provide reliable, long-term protection.

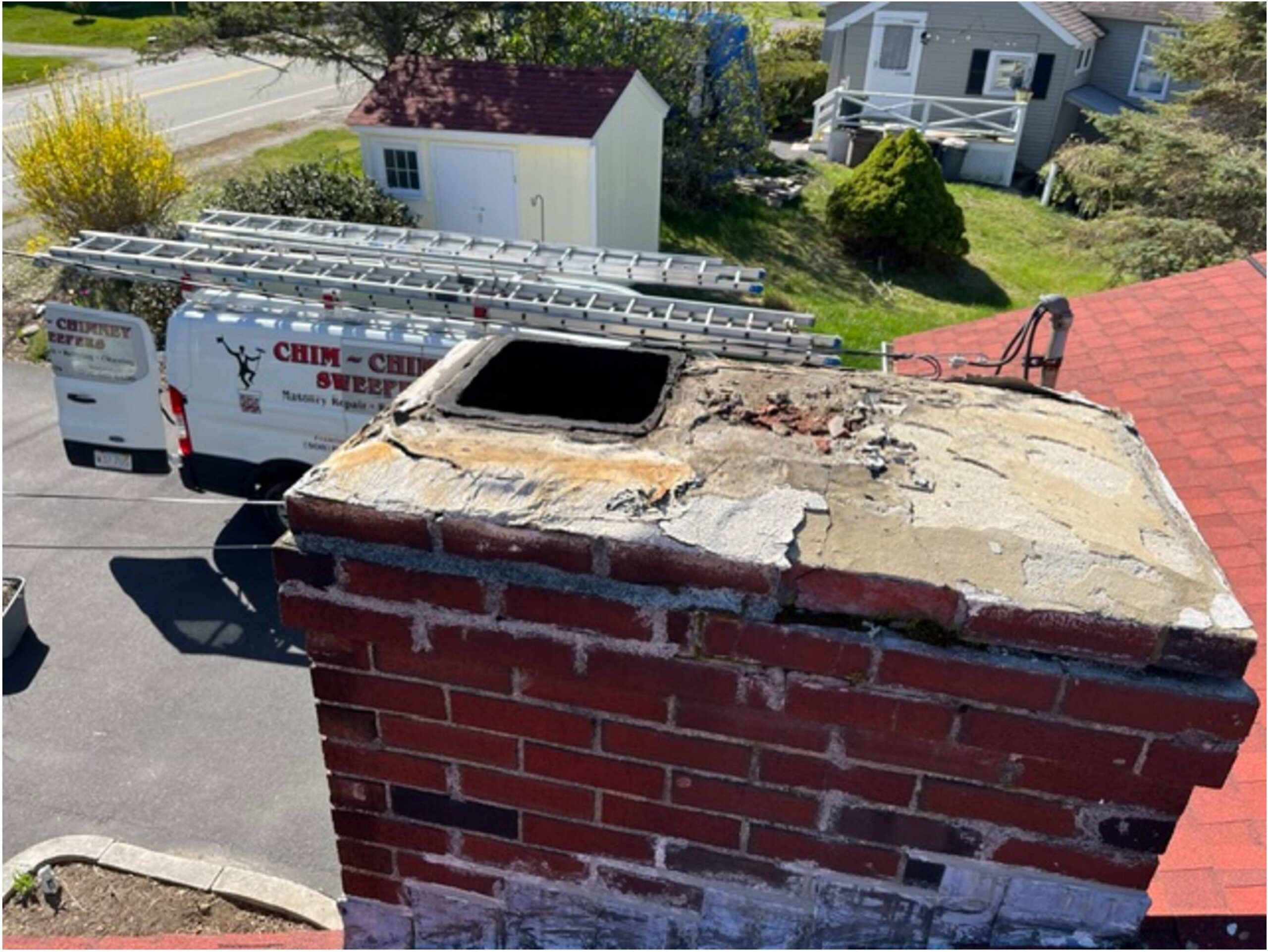

What Our Team Found: Severe Deterioration Beyond Repair

When the Chim-Chimney Sweepers team arrived at this Whitinsville property, the condition of the crown made the path forward clear. This wasn’t a crown with a few cracks that could be filled and sealed. It was a crown that had deteriorated severely — crumbling apart, with pieces already missing or falling away, and the remaining sections in no condition to continue protecting the chimney effectively.

Attempting to patch what remained would have been an exercise in short-term thinking. Applying sealant or repair compound over concrete that has already broken down structurally does not restore the crown’s integrity — it simply delays the inevitable while potentially masking ongoing deterioration from view. The right solution was a complete removal of the remaining crumbling material and a full pour of a brand new concrete crown, built properly from scratch.

Our team also took note of the condition of the top courses of brickwork just below the crown — and found that the mortar joints in those upper courses had experienced some wear and deterioration as well, consistent with the moisture exposure that comes with an unprotected chimney top. Those courses would need attention before the new crown was poured.

The Rebuild: Every Step Done Right

With the assessment complete, our team went to work on a comprehensive rebuild process that addressed not just the crown itself but the masonry it sat upon.

Step 1: Complete Removal of the Deteriorated Crown

The first step was clearing away what remained of the old crown. Our team carefully removed the crumbling concrete from the top of the chimney, taking care not to disturb the underlying brickwork any more than necessary in the process.

This step requires patience and attention to detail. Pieces of deteriorating concrete can be bonded unevenly to the top courses of brick, and removing them cleanly – without damaging the masonry below – takes care and experience. Our team cleared the chimney top completely, leaving a clean, stable surface ready to receive the new crown pour.

Thorough removal of the old material is non-negotiable. Any deteriorated concrete left behind would create weak points in the bond between the new crown and the chimney surface, compromising the new crown’s integrity from day one.

Step 2: Tuckpointing the Top Courses of Brickwork

Before pouring the new crown, our team addressed the mortar joints in the top couple of courses of brickwork — the courses that sit directly beneath the crown and are most directly affected by any moisture that has been penetrating through the deteriorated concrete above.

Tuckpointing involves removing deteriorated mortar from between the brick joints and replacing it with fresh, properly mixed mortar. This process restores the structural integrity of the brickwork, eliminates existing pathways for water infiltration, and ensures that the masonry the new crown will sit on is sound and stable.

Tuckpointing those top courses before the crown pour was an important detail — one that ensures the new crown has a solid, well-maintained masonry foundation to sit on and bond to. It also addresses any mortar deterioration that had developed as a result of the exposure caused by the failing crown above, preventing that deterioration from continuing to progress now that the crown will be protecting those courses properly.

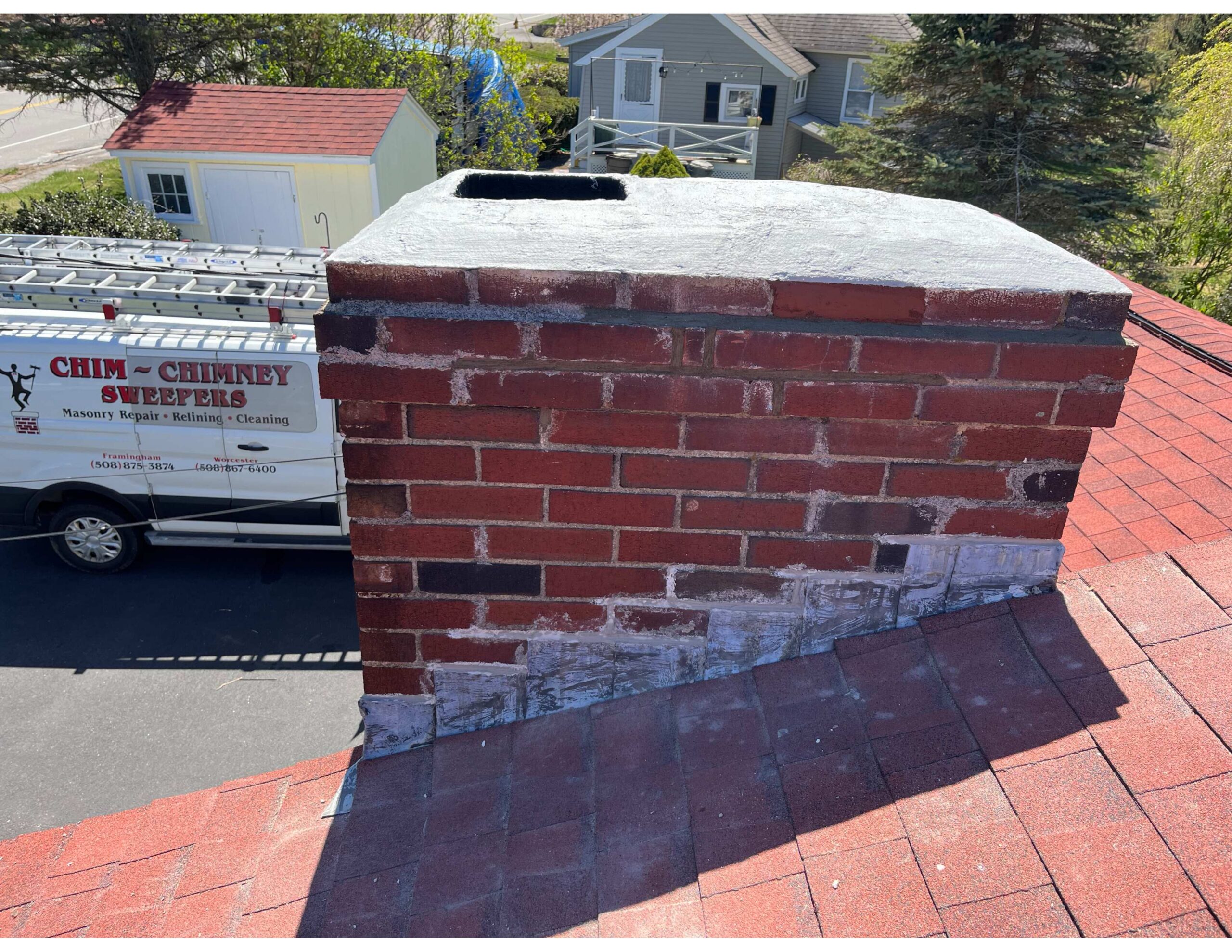

Step 3: Pouring the New Concrete Crown

With the old crown fully removed and the top courses of brickwork tuckpointed and sound, our team poured a brand new concrete crown.

A properly constructed chimney crown is not simply a flat cap of concrete slapped across the top of the chimney. It is a carefully formed structure that must meet several important criteria to perform its protective function effectively:

• Proper slope. The crown must be formed with a slope toward the outer edges to ensure water drains away from the flue and the chimney structure rather than pooling on top
• Adequate overhang. The crown should extend slightly beyond the outer face of the chimney, directing water away from the masonry below
• Correct thickness. A crown needs sufficient thickness to withstand freeze-thaw cycling without cracking — thin crowns are prone to the same rapid deterioration that brings many homeowners to this situation in the first place
• Clean flue clearance. The opening around the flue liner must be properly sized to allow for ventilation while minimizing the gap that water and debris can enter through

Our team poured the new crown with attention to all of these specifications, forming it carefully to ensure it would perform exactly as a chimney crown should – shedding water effectively, protecting the masonry below, and holding up against New England’s demanding climate for the long term.

Step 4: Water Sealing the New Crown

Once the new concrete crown had been poured and properly cured, our team applied a professional-grade water sealant to the surface. This step is one that distinguishes a truly complete crown installation from one that merely does the minimum — and it is the step that will make the difference in how long this new crown remains in excellent condition.

Fresh concrete is porous. Without sealing, a newly poured chimney crown will absorb moisture with every rainfall and hold it against the surface through every freeze-thaw cycle, beginning the same deterioration process that eventually destroyed the previous crown. Water sealing addresses this vulnerability directly.

Is Your Chimney Crown Showing Signs of Deterioration?

Chimney crown deterioration is one of those problems that starts small and grows quickly. A hairline crack in the spring becomes a significant fracture by fall. A few missing pieces this year become a completely deteriorated crown within a season or two. And all the while, the unprotected masonry below is absorbing moisture and experiencing its own progressive damage.

If you are seeing any signs of deterioration, it is worth having a professional evaluate the condition of your chimney crown before the damage progresses further. In many cases, early-stage crown damage can be addressed with repair and sealing – but as this Whitinsville homeowner’s experience illustrates, waiting too long means a full rebuild becomes the only viable option.

Whether your chimney crown needs sealing, repair, or a full rebuild from scratch, the team at Chim Chimney Sweep has the expertise and experience to do the job right. We serve homeowners throughout Massachusetts with honest assessments, quality craftsmanship, and a commitment to work that stands up over time – reach out today.
