Complete Chimney Rebuild in Holliston, MA

AFTER

The Condition of the Chimney: A Closer Look at the Damage

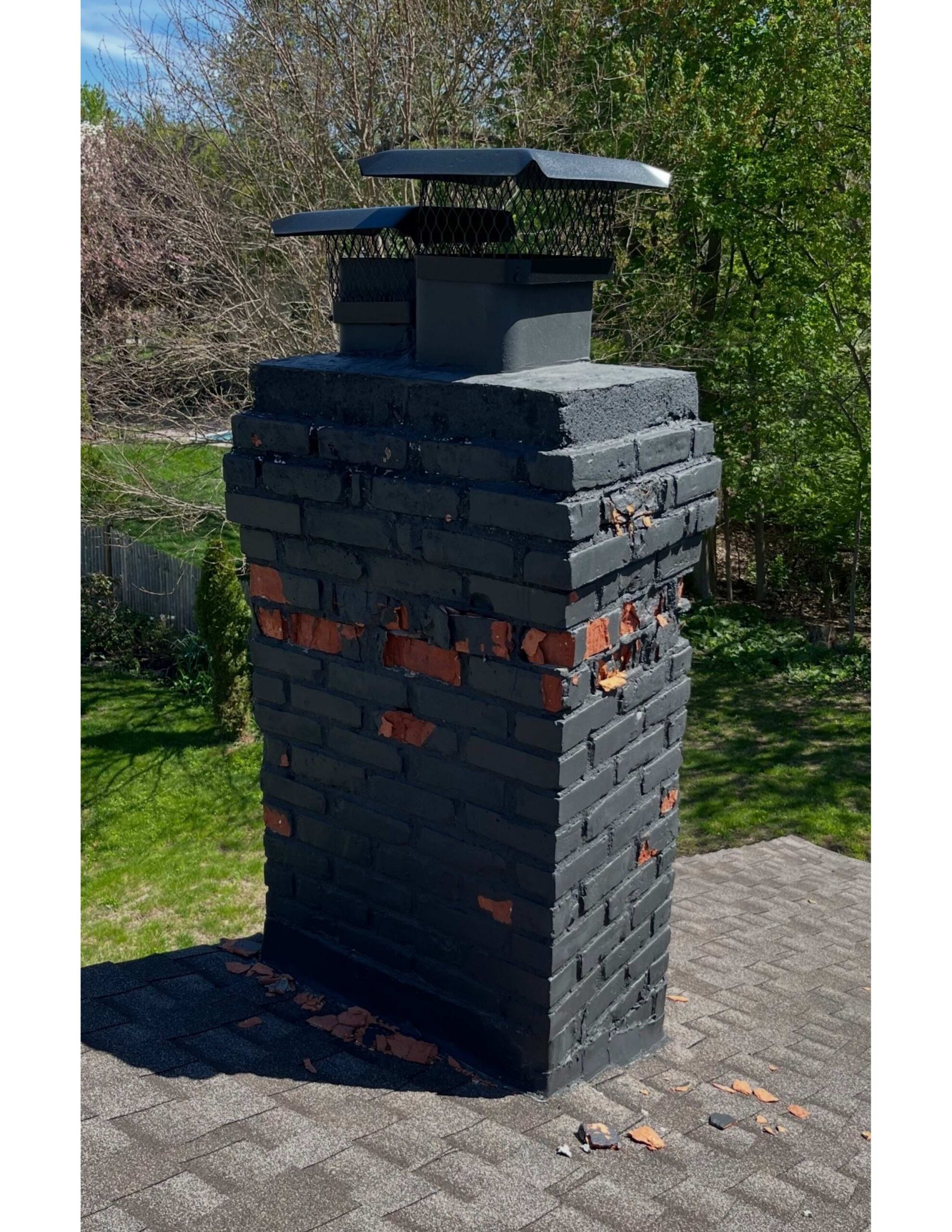

When our crew first arrived at this Holliston home, what they found was a chimney that had been neglected for years and was showing every sign of it. Each individual issue on its own would have warranted attention — together, they painted a picture of a chimney that had reached the end of its serviceable life in its current condition.

Peeling Black Paint

The chimney had been painted black at some point in its history — a cosmetic choice that was now working against the structure. Paint traps moisture against the masonry, preventing the brick from breathing naturally. Over time, this leads to accelerated deterioration as moisture works its way into the brick and mortar, freezes, expands, and slowly breaks the material apart. The paint was now chipping off in large sections, leaving the underlying brickwork exposed and damaged.

Crumbling Brickwork

The mortar joints holding the brickwork together had eroded significantly. Bricks that were once solidly in place had become loose, shifted, or broken apart entirely. Crumbling mortar is one of the most serious structural issues a chimney can face — without intact mortar joints, the entire chimney becomes unstable, and water infiltration accelerates at every joint. Left unaddressed, this type of deterioration can lead to partial or full chimney collapse.

Damaged Chimney Caps and Flue Tiles

The chimney caps, designed to keep water, debris, and animals out of the flue, were in rough shape. And inside the chimney, the clay flue tiles — the liner that protects the surrounding masonry from heat and combustion gases — had eroded badly. In the section of the chimney where the furnace was venting, this erosion was particularly concerning. A compromised flue liner is not just a performance issue; it is a serious safety hazard, as it can allow carbon monoxide and other combustion gases to leak into the home.

The Rebuild Process: From the Roofline Up

After a thorough assessment, our team developed a complete plan of action to restore this chimney from the ground — or rather, the roofline — up. Every element of the rebuild was carried out with quality materials and craftsmanship built to last through New England’s demanding weather conditions.

Step 1: Full Demolition to the Roofline

The first step was removing everything that couldn’t be saved. Our crew carefully demo’d the entire chimney structure down to the roofline, clearing away the crumbling, painted brickwork and creating a clean foundation from which to rebuild. This approach ensured that no compromised masonry was left in place beneath the new construction.

Step 2: Rebuilding the Chimney to Code Height

With the old structure removed, our masons rebuilt the chimney from scratch using quality brick and mortar, carefully constructing each course to ensure structural integrity and a clean, finished appearance. The chimney was rebuilt to meet current Massachusetts building code height requirements — an important detail that ensures proper draft, safe venting, and compliance with local regulations.

Step 3: Pouring a New Concrete Crown

At the top of the rebuilt chimney, our team poured a brand new concrete crown. The chimney crown is one of the most critical components of any chimney system. It acts as the first line of defense against water, directing rain and snow away from the flue opening and protecting the top of the masonry from moisture intrusion. The new crown was carefully formed and finished to ensure proper drainage and long-term durability.

Step 4: Replacing Eroded Clay Flue Tiles with a Stainless Steel Liner

One of the most important — and most safety-critical — elements of this project was addressing the deteriorated flue liner. In the section of the chimney where the furnace was venting, the clay flue tiles had eroded to the point where they could no longer safely contain combustion gases.

Our team removed the eroded clay tile section and replaced it with a stainless steel liner. Stainless steel liners offer significant advantages over traditional clay tile:

• Superior durability – Stainless steel holds up against the corrosive byproducts of combustion, especially from gas and oil-burning appliances
• Seamless construction – Unlike sectional clay tiles, a stainless steel liner has no joints that can crack or separate over time
• Improved safety – A properly fitted stainless steel liner ensures that combustion gases are safely directed out of the home
• Code compliance – Stainless steel liners meet current code requirements for appliance venting and chimney liner integrity

Step 5: Custom Stainless Steel Chimney Cap

To finish everything off and ensure the rebuilt chimney was fully protected, our team installed a custom stainless steel chimney cap. The cap fits precisely over the flue opening, keeping rain, snow, debris, and animals out while allowing gases to vent freely. A stainless steel cap is the best long-term investment for chimney protection — it won’t rust, won’t deteriorate in the elements, and is built to last for many years.

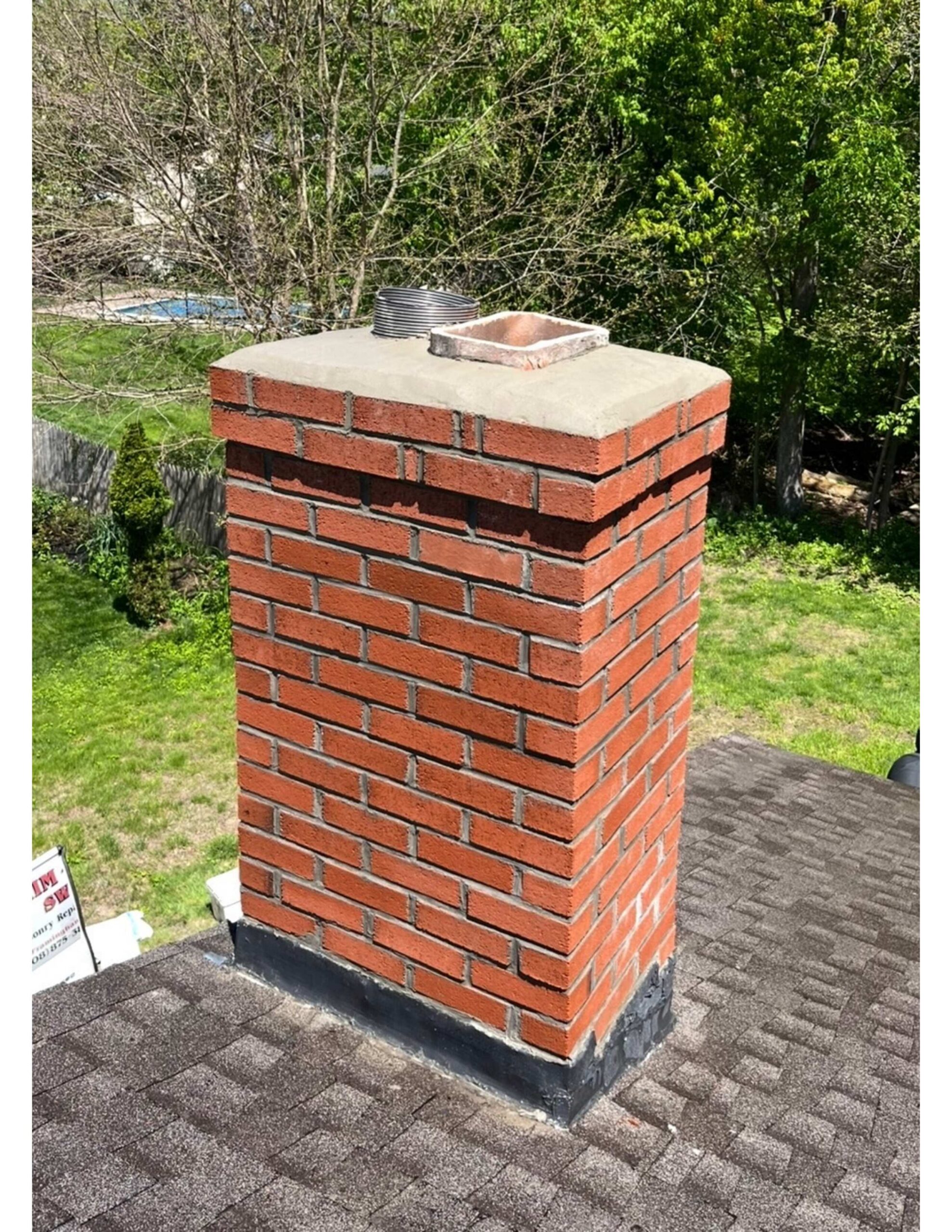

The Transformation: Before and After

The difference between the chimney our team arrived to find and the chimney we left behind is nothing short of dramatic. What had been a deteriorating, painted, crumbling structure — a potential safety hazard and an eyesore — became a clean, structurally sound, fully code-compliant chimney ready to serve the home safely for decades to come.

The completed rebuild included:

✅ Full demolition of the original failing brickwork down to the roofline

✅ Rebuilt chimney structure using quality brick and mortar

✅ Construction to current Massachusetts code height requirements

✅ A newly poured concrete crown for water protection

✅ Eroded clay flue tiles replaced with a stainless steel liner for safe furnace venting

✅ Custom stainless steel chimney cap for complete top-of-chimney protection

Why a Full Chimney Rebuild Is Sometimes the Right Call

Homeowners often wonder whether a repair can save them money over a full rebuild. In some cases, targeted repairs are absolutely the right solution. But when a chimney has reached the level of deterioration seen in this Holliston home, attempting to patch and repair rather than rebuild can actually cost more in the long run — and leave the homeowner with ongoing safety concerns.

A full rebuild gives you:

• A fresh start with sound, properly installed masonry
• Peace of mind knowing that no compromised material remains in the structure
• Code compliance with current building and venting requirements
• Long-term value with a chimney built to last rather than one held together with repeated repairs

Is Your Chimney in Need of a Rebuild or Major Repair?

If your chimney is showing signs of serious deterioration — crumbling mortar, damaged flue tiles, a failing crown, or structural instability — don’t wait for the problem to get worse or, worse, become a safety emergency. The team at Chim-Chimney Sweepers has the experience and expertise to assess your chimney honestly and recommend the right course of action, whether that’s targeted repairs or a full rebuild.

Contact us today to schedule your chimney inspection.

Proudly serving Holliston, MA and surrounding communities throughout Massachusetts.
